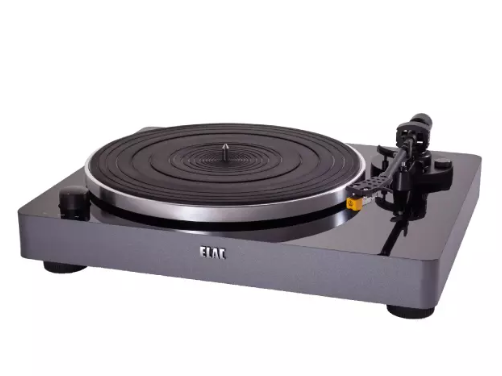

Thông số kỹ thuật Miracord 50:
Connector: RCA pin jack including RCA cable accessories
Voltage: 100 to 240 V AC / 50 to 60 Hz
Power Consumption: 1.5 W (less than 0.5 W at standby)
Dimensions: (WXHXD) 5.5 x 16.05 x 14.20
Weight: 12.10 lb
Turntable Section

Drive System: Belt drive
Motor: DC motor
Selectable Speeds: 33⅓ and 45 rpm
Motor Servo: Speed rotation and servo system
Rotation Speed Variation: +/-1%
Wow and Flutter: 1%
Signal-to-Noise Ratio: -67 dB or higher (A-weighted) -60 dB or higher (unweighted)
Platter: Aluminum die-cast
Platter Diameter: 0 in / 300 mm
Tonearm Section
Type: Aluminum tube, static-balanced
Effective Arm Length: 8 in / 223.6 mm
Stylus Pressure Range: 0 to 0 g
Cartridge Weight Range: 5 to 6.0 g
Effective Arm Mass: 4 g
Overhang: 6 mm
Offset Angle: 25 degrees
Anti-Skating: Adjustment Supported
Main Bearing: Stainless steel
Cartridge Section:

Type: Audio-Technica AT91 moving magnet
Stylus Construction: Bonded diamond
Mount: Half-inch
Frequency Response: 20 Hz to 20 kHz
Channel Separation: >18 dB
Channel Balance: 5 dB
Vertical Tracking: Angle 20 degrees
Stylus Pressure: 0 g +/-0.5 g
Cartridge Weight: 0 g +/-0.5 g
Headshell Weight: 0 g (including screws, nuts and wires)
Phono Equalizer Amplifier

Type :Moving magnet (MM)
Phono Output: 5 mV (1 kHz, 3.54 cm/sec)
Line Output: 140 mV (-17 dBV)
Phono/Line: Switchable
Supported Load Impedance: 47 kΩ
