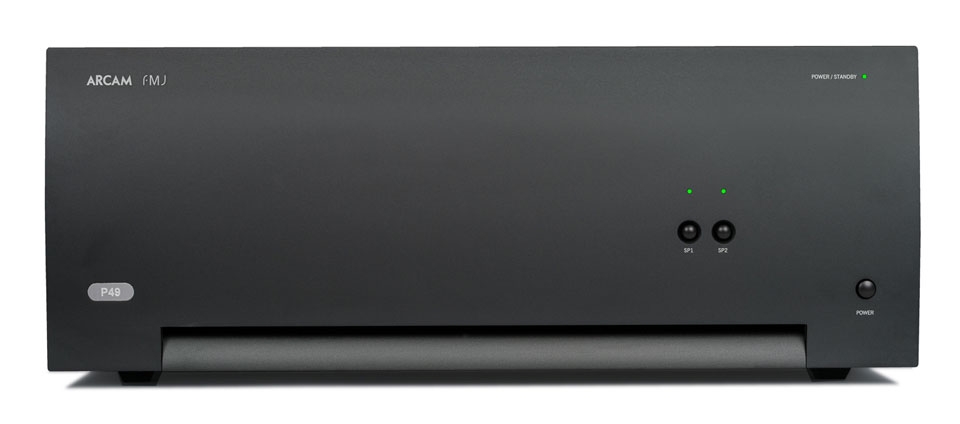

Power Amplifier Arcam P49

Liên hệ

Arcam’s P49 power amplifier represents the pinnacle of Arcam’s audio engineering. We set out to incorporate everything we have learnt in almost 40 years to deliver a power amplifier that will set new standards and provide class leading sound quality for the best possible reproduction of your music.

Hết hàng

Danh mục: Từ khóa:
  • Mô tả
  • Đánh giá (0)

Mô tả

Mô tả sản phẩm

Drawing on the many years of amplifier design experience at Arcam, the P49 uses the best quality components and engineering practice to produce a product that will give many years of musical pleasure and reliable service.

With a class G amplifier, toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion and noise the P49 is capable of reproducing music with all its original authority and detail.  Rest assured you will be hearing the music just as the artist intended.

The P49 has been designed to leapfrog the competition with a massive 200 watts per channel into 8 ohms and 400 into 4 ohms. It delivers 50 watts in pure class A mode while allowing for huge extra power reserves from our latest generation class G topology that is both clever and efficient. During normal operation, distortion is measured in less than one part per million so that this massive power is deliver with total control and finesse.

There have been great strides made in improving audio sources and loudspeakers in recent years and the time is right to match them in the field of amplifier design. This ground breaking amplifier is a must audition amplifier for music lovers who understand that power is nothing without control.

The P49 has been designed with system building flexibility in mind and can be configured as a traditional stereo power amp, bridged mode or dual mono mode allowing for the “ultimate” system of a C49 with six bridged P49s tri-amping the speakers.

Technical Specifications

Continuous power output, per channel, 8Ω

  • Both channels driven, 8Ω,20Hz-20kHz, 0.2% THD – 200W
  • Single, 4Ω, at 1kHz – 400W

Inputs

  • Nominal sensitivity  for 200W / 8Ω – 1.15V (RCA), 2.3V (XLR)
  • Input impedance – 10kΩ
  • Frequency response 20Hz-20kHz +/- 0.05dB
  • Signal/noise ratio (Awtd) 50W / 8Ω – 110dB

General

  • Power consumption (standby) – <0.5W

Dimensions & Weights

  • W x D (inc. speaker terminals) x H (inc. feet) – 433 x 425 x 171mm
  • Weight (net) – 18.0kg
  • Weight (packed) – 19.7kg

EAN/UPC code

5 060133 602330
